SG9000 RF Signal Generator
- 400 kHz to 400 MHz, 1 Hz Step Resolution
- Excellent Phase Noise Performance: -139 dBc/Hz, Fc =397.8 MHz, 20 kHz Offset (020 TCXO Option)
- -130 dBm to +10 dBm RF Power Range
- 0.1 dB RF Attenuator Step Resolution
- Frequency Sweep (1 ms min dwell time)
- Spurious Free Dynamic Range: Wide Band: -50 dBc; Narrow Band: -60 dBc (with TCXO Option 020)
- TCXO ± 0.5 ppm (Standard)
- TCXO ± 1 ppm Low Phase Noise (Option 020)
- USER TCXO CAL: Short-Term Accuracy 0.2 ppm
- External RF Output On/Off & Sweep Start Triggers
The SG9000 RF Signal Generator delivers bench-top performance in a light-weight portable package. Best-in-class phase noise, spectral fidelity, and output-power-range performance makes it the perfect choice for measuring SSB, AM, and FM communication equipment performance in the lab or field environment.
Benchtop Performance at a Fraction of the Cost
The SG9000 is built on Analog Devices’ high-performance AD9910 14-bit direct digital synthesizer; Microchip’s ATmega-2560 microcontroller; Abracon/NEL TCXOs; Mini-Circuits’ digital-step RF attenuators and RF switches. Combined, these technologies deliver comparable performance to expensive benchtop signal generators at a fraction of the cost.
Windows UI
Operation is simple and intuitive using the SG9000 Windows remote control application or chose SCPI command interface in the LabView environment.
Key User Features
- Windows-10/11 User Interface (UI)
- Small Bench-Top Footprint, Light-Weight, Perfect for Field Service Tasks
- +30 dBm Reverse RF Power Protection/Alarm & 50 VDC Input Block Protection
- External Sync Output for RF Output On/Off and Frequency Sweep Start
- Flexible 10 Volt to 33 Volt DC Power Input, Reverse Polarity Protection & 1.5 kVDC Galvanic DC Source Isolation
- SCPI Command Interface
- Front Panel OLED Status Display
Compact, Rugged, and Portable
The SG9000 is packaged in a compact (8.2″ x 5.7″ x 2.7″) extruded aluminum enclosure, black anodized finished and laser etched lettering for exceptional appearance and durability. The small form-factor conserves valuable lab bench space while the light-weight ruggedized packaging makes it ideal for field service tasks.

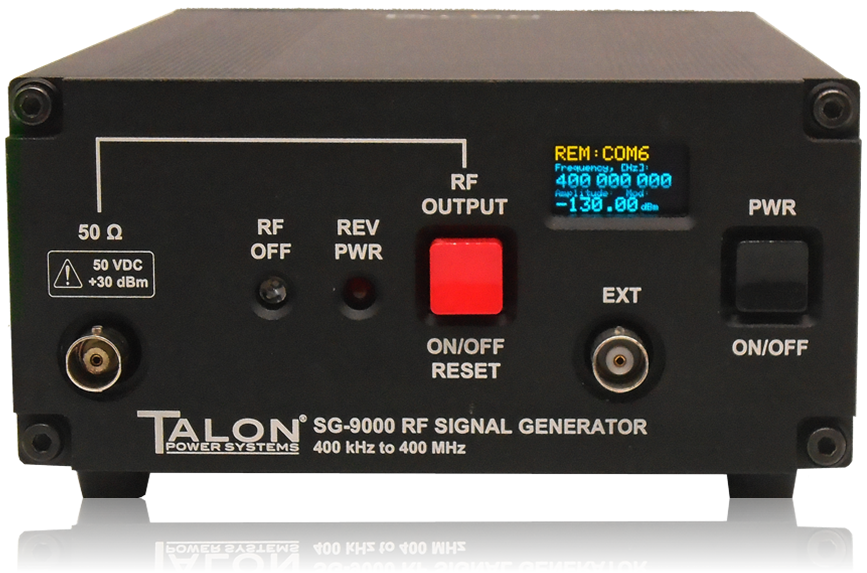

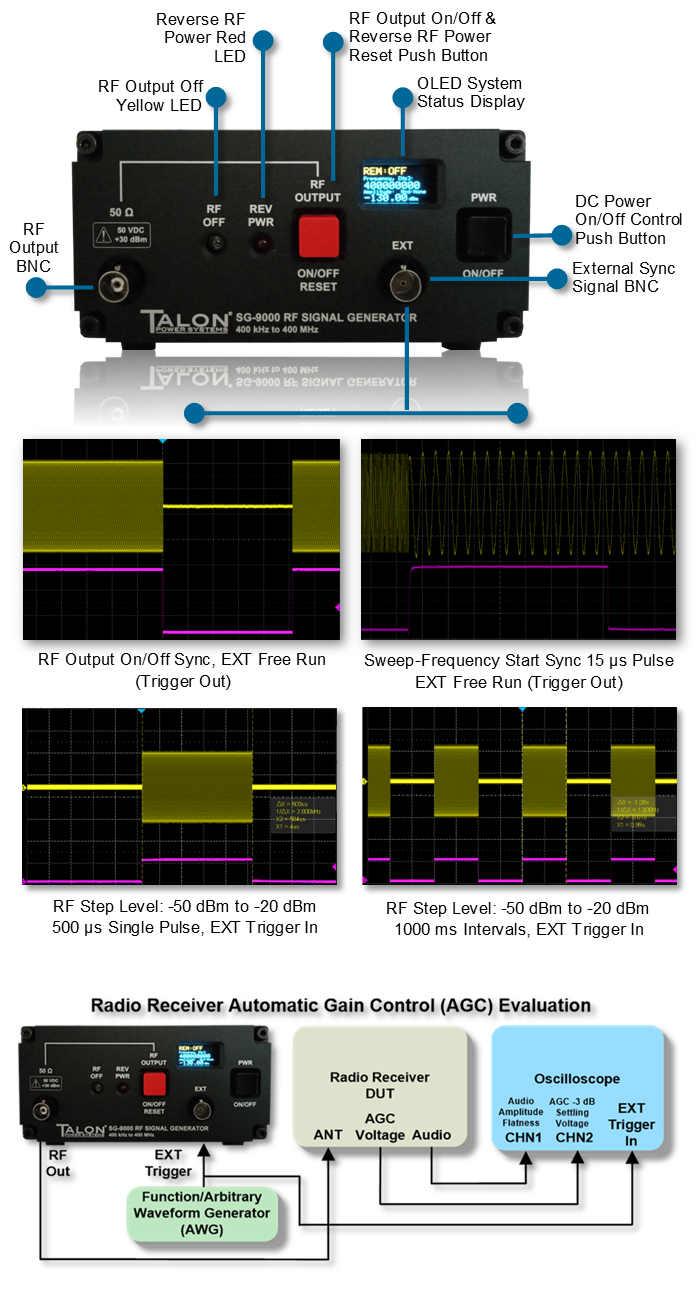

Front Panel Controls & Connectors
- RF OFF LED illuminates yellow when the RF output is off
- REV PWR (reverse RF power) LED flashes red when an external RF power source greater than +20 dBm typical is inadvertently applied to the RF output connector. The RF output remains off until manually reset
- RF OUTPUT push-button switch, duplicates the Windows RF on/off output control function also resets the reverse power latched off state
- Organic LED (OLED) displays the instruments current operating status
- EXT Sync Signal RF Out TTL-high when the RF output is enabled, TTL-low when the RF output is disabled―an excellent aid in evaluating radio receiver AGC attack/release time characteristics.
- EXT Sync Signal Sweep Start TTL-high 15 µs pulse generated at the start of each sweep cycle―perfect for oscilloscope sweep triggering during bode-plot evaluation of filters and networks.
Rear Panel Controls & Connectors
- DC PWR IN accepts 10 to 33 VDC, reverse polarity/transient protected and galvanically isolated from the input power source
- PROGRAMMING PORT (RX0/TX0) supports Arduino IDE firmware upgrade
- REMOTE CONTROL (RX1TX1) USB-B port, supports the SG-9000 Windows-10 remote control application
- RX0/TX0 & RX1/TX1 Red/green LEDs indicate serial USB Arduino IDE and remote control communications activity
- EXT REF IN, external 50 MHz reference input, -10 dBm typical. Suitable for use with a GPSDO frequency reference source.
- Case Electrical Ground, Banna Jack, 4.5 mm

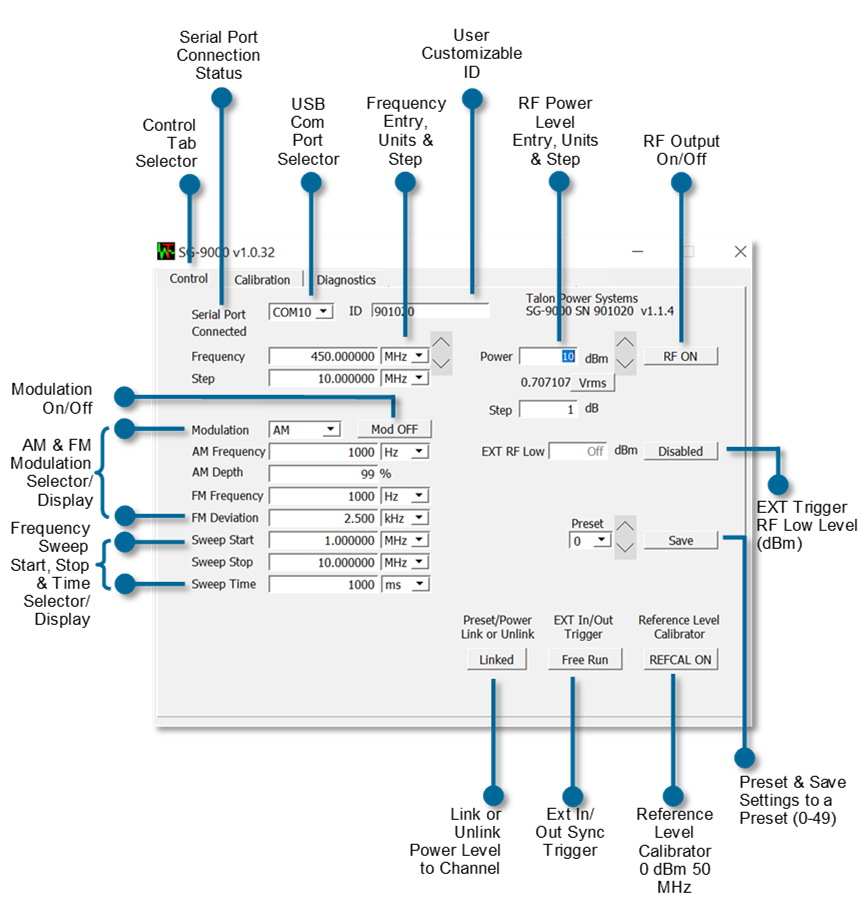

Windows Remote Control User Interface
The SG9000 UI delivers the traditional look and feel of Windows’ instrument control with operation organized in three user selectable tabs:
The Control Tab allows you to easily select frequency, modulation, and RF power level and can store the selection configurations in one-of-fifty channel locations with channel-0 serving as the power-on default setting. Additional capabilities include:
- USB Windows Control Port Selection
- RF Output On/Off Control
- RF Output Level in dBm and µV rms
- Link or Unlink the RF Power Level to the Selected Channel
- User Customizable ID to Help Identify Signal Generator Task in a Multi-Generator Application
Software & SCPI Commands
- SCPI commands support all available functions and operating conditions, such as: FREQuency, POWer, AM:STATe, AM:FREQuency, etc.
Phase Noise Performance
Excellent phase noise performance enables critical analysis of a radio receiver’s out band IMD, third order intercept, and desensitization dynamic range. Typical phase noise in the HF spectrum is -146 dBc/Hz* with the standard 50 MHz REFCLK TCXO or -154 dBc/Hz* with the 1 GHz REFCLK low phase noise option.
Good phase noise performance is maintained in the UHF spectrum, typically -122 dBc/Hz* with the standard 50 MHz REFCLK and -139 dBc/Hz* with the 1 GHz low phase noise REFCLK option (*20 kHz offset).
Phase Noise: -139 dBc/Hz, 20 kHz Offset; Fc= 397.8 MHz, +10 dBm; 1 GHz REFCLK;
Keysight E5052B Signal Source Analyzer

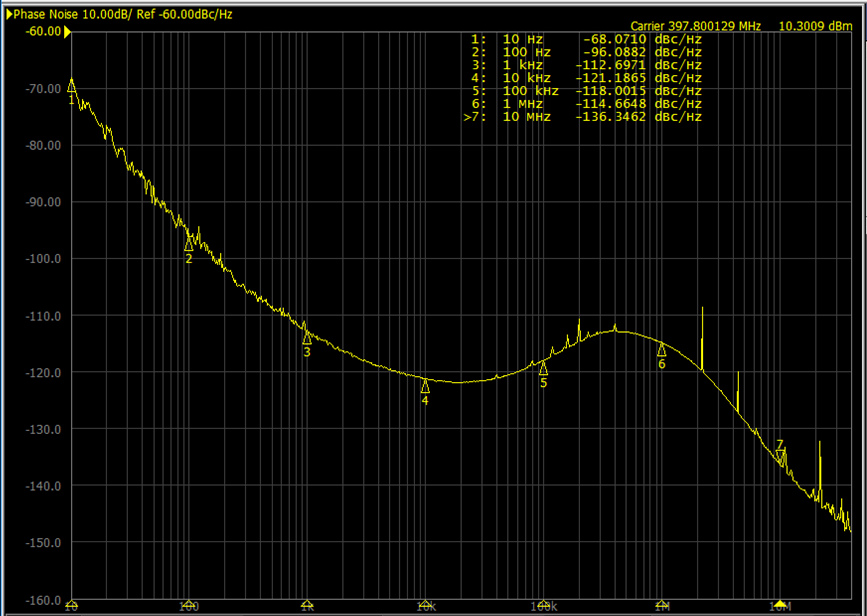

Phase Noise: -122 dBc/Hz, 20 kHz Offset; Fc= 397.8 MHz, +10 dBm; 50 MHz PLL REFCLK;
Keysight E5052B Signal Source Analyzer
Reference Clock (REF CLK) Options
The AD9910 DDS uses a 1 GHz reference clock, achieved directly by a 1 GHz TCXO or indirectly using the built-in PLL (20X multiplier) and a 50 MHz TCXO.
PLL operation also supports the use of an external GPS discipline oscillator (GPSDO) capable of generating a 50 MHz signal.
- Standard 50 MHz TCXO: Good phase noise performance typically -122 dBc/Hz. Fc =397.8 MHz, 20 kHz offset, +10 dBm.
- Option 020 1 GHz TCXO: Excellent phase noise performance typically -139 dBc/Hz. Fc = 397.8 MHz, 20 kHz offset, +10 dBm RF output.
- Option 030: External GPDO 50 MHz Kit
User settable short-term accuracy of 0.2 ppm can be acheived using the Windows Frequency Offset function.
Protection from Harmful Events & Mishaps

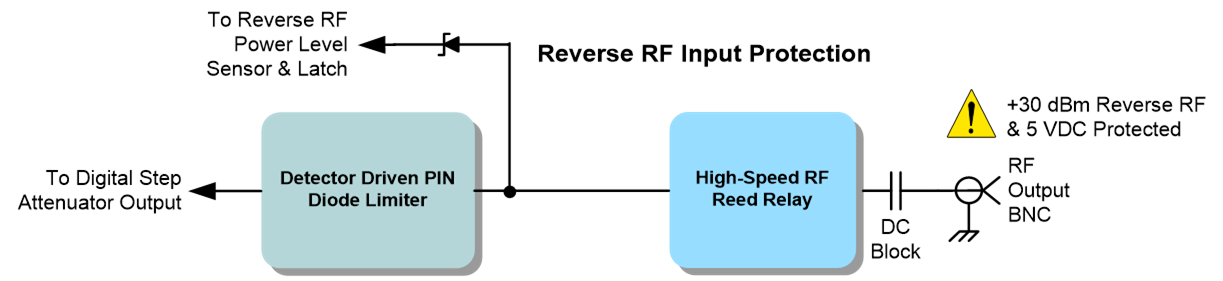

RF Input Protection for the inadvertent application of reverse RF up to +30 dBm is achieved through a high-speed RF reed relay and a detector-driven PIN diode limiter. In operation, levels above +20 dBm will latch the RF output reed-relay open. During the relay’s 0.05 ms transition time, reverse power is clamped to a safe-level by the PIN diode limiter. A series output capacitor blocks DC voltages up to 50 VDC.
DC Power Input Protection is provided by a slow-blow fuse, 600-Wpk transient voltage suppressor (TVS) diode, line-to-line and line-to-ground bypass capacitors, reverse-polarity Schottky power diode, and common mode EMI filter. In addition, the dc-to-dc converter galvanically isolates the input DC power from the 5-volt system through a 1.5 kVDC rated physical isolation barrier. This rugged input power architecture makes the SG-9000 ideal for field service sites where transient voltage events and ground-loops can materially interfere with and degrade measurement performance.
Accessories & Options
The SG9000 is supplied with all accessory items required to operate.
SG9000 Windows software and the latest SG9000 firmware updates are available on line at www.talonpowersystems .com/winsoft
Options
- Option 020: Ultra Low Noise TCXO, 1 GHz ± 1 ppm
- Option 030: GPSO 50 MHz Input Kit
- Commerical Grade AC-to DC Wall Mount Linear 18 VDC 9W Power Supply, Input 240 VAC ±20%, 50-60 Hz
Accessories
- Commerical Grade AC-to-DC Wall Mount Linear 18 VDC 9W Power Supply, Input: 120 VAC ±20%, 50-60 Hz
- USB-A to USB-B Cable Assy, Length: 2 M
- DC Power Connector 2-Pin 5.5 mm
- Ground Banana Jack, 4.5 mm, Green
Specifications
Frequency Range
Range: 400 kHz to 400.0 MHz
Frequency Control Step Resolution: 1 Hz
Channel Storage: 50 channels
Frequency Reference Clock
Standard: 50 MHz ± 0.5 ppm TCXO
Initial Calibration: ± 1 ppm
Aging / Year: ± 1 ppm, Max: ± 6 ppm over 10-years
Over Temperature Range: ± 0.5 ppm
Option 020: 1 GHz 1± ppm Ultra Low Phase Noise TCXO
Initial Calibration: ≤ ± 1 ppm typical, ± 1.5 ppm max
Aging / Year: ± 1 ppm after 1-year
Over Temperature Range: ± 1 ppm
Note: Standard & Option 020 user short-term calibration up to 0.2 ppm typical
Option 030: GPSDO
RF Power Level & Control
Power Range: -130 dBm to +10 dBm (AM 99% modulation & +4 dBm carrier = +10 dBm PEP max), 50-Ohm termination
Step Resolution: 0.1 dB
Level Uncertainty: +10 dBm to -130 dBm: ≤ 1.1 dB
Level Stability: ≤ ±0.1 dB over 8-hours
VSWR: < 1.8:1 nominal (RF output BNC connector)
RF Output-Off Residual Level: ≤ -135 dBm
RF Range Calibrator Capability: 0 dBm ± 0.1 dB; 50 MHz
RF Output Control: Front panel switch and remote control with yellow LED RF off annunciator
RF Output Trigger: TTL-high RF output on, TTL-low RF output off (Front Panel EXT BNC connector); Trigger TTL high RF-on delay: 26 µs, RF-off trigger TTL low delay: 123 µs
Reverse RF Power & DC Voltage Protection
Maximum Reverse RF Input Power: +30 dBm, trip threshold +20 dBm typical, RF output open-circuit when tripped with flashing red LED reverse power annunciator, front panel resettable
Maximum DC Input Voltage: 50 VDC
Power Off, RF Output Circuit Condition: Open circuit
Spectral Purity
Narrow-Band (25 kHz) Spurious Free Dynamic Range: -50 dBc (-60 dBc with 1 GHz REFCLK 020 option)
Wide-Band (400 kHz to 500 MHz) Spurious Free Dynamic Range: -45 dBc (-55 dBc with 1 GHz REFCLK 020 option)
Harmonics: 2nd: ≤ -40 dBc, 3rd: ≤ -45 dBc
PLL 50 MHz Reference Oscillator Feed-Thru, Fundamental & Harmonics Products: < -130 dBm
SSB Phase Noise
SSB Phase Noise Measurements: 20 kHz Offset from Fc, Typical
50 MHz TCXO REFCLK (Standard): -122 dBc/Hz, Fc=397.8 MHz; 127 dBc/Hz, Fc=200.1 MHz; 133 dBc/Hz, Fc=98.6 MHz; 146 dBc/Hz, Fc=20.1 MHz
1 GHz TCXO REFCLK (Option 020): -139 dBc/Hz, Fc=397.8 MHz; -144 dBc/Hz, Fc=200.1; -149 dBc/Hz, Fc=98.6 MHz; 154 dBc/Hz, Fc=20.1 MHz
Front Panel Connectors, Switches & Indicators
RF Output Connector: BNC female, 50-Ohm, unbalanced
RF Output/Reverse Power Reset Switch: Alternate push-on/push-off
RF Off Indicator: LED illuminated yellow (RF on: extinguished)
Reverse Power Indicator: LED flashing red
DC Power Switch: Alternate push-on/push-off
EXT Output Connector: BNC female, RF output on TTL high, or 15 µs TTL pulse at sweep low frequency start
Amplitude Modulation (AM)
Frequency Range: 10 Hz to 100 kHz in 1 Hz steps
Modulation Depth: 0% to 99% in 1% steps
Max Linear AM Power: 99% Modulation & +4 dBm Carrier = +10 dBm PEP max), 50-Ohm
Frequency Modulation (FM)
Frequency Range: 10 Hz to 100 kHz in 1 Hz steps
Frequency Deviation Range: 0 Hz to 100 kHz in 1 Hz steps
Frequency Sweep
Sweep Type: Linear
Sweep Range: Full frequency range, Start Frequency Error: As Calibrated, Stop Frequency Error: 5 ppm Typical
Sweep Mode: Continuous
Dwell Time Range: 1 ms to 10s, ± 3.5%
Dwell Time Resolution: 1 ms
Trigger Output: 15 µs TTL-high pulse at the low-frequency sweep start (EXT connector)
Sweep On/Off Control: Windows remote control UI Sweep On/Off button or SCPI control
Remote Control Protocol & Software
Remote Control Protocol: Standard Commands for Programmable Instruments (SCPI)
Windows SG-9000 remote controlled software supplied
System Firmware: Arduino open source
USB Communications
USB Arduino IDE Port: Ruggedized USB 2.0 Type-B with data line short to V-bus protection & IEC ESD protection (IEC 61000-4-2 & ISO 10605 for ± 8kV contact discharge ± 15 kV air gap, TX & RX LED communications activity indicators. Com, bps: 9600; bits: 8; parity: none; stop bit: 1
USB Remote Control Port: Ruggedized USB 2.0 Type-B with data line short to V-bus protection & IEC ESD protection (IEC 61000-4-2 & ISO 10605 for ± 8kV contact discharge ± 15 kV air gap, TX & RX LED communications activity indicators. Com, bps: 9600; bits: 8; parity: none; stop bit: 1
Power Supply System
DC Power Converter: Switching DC-to-DC power converter
DC Input Voltage Operating Range: 10 to 33 VDC
DC Input Current Consumption 12 VDC (0 dBm): 315 mA (< 4 W) typical, power-off: 25 mA typical
Converter Protection: 1.5 kVDC galvanic input/output isolation; under voltage, overload, short-circuit protection, and input transient voltage protection; internal PCB SMT DC fuse
DC Power Jack: 2-Pin, 5.5 mm outer, 2-mm center-pin + polarity
AC Wall Mount Power Supply: Commerical grade linear AC-to-DC (transformer/bridge rectifier) Power Supply, 18 VDC 9 W output, 120 VAC ± 20%, 50-60 Hz Input, 72” cable length with mating 5.5 mm DC power plug
Rear Panel Connectors
USB Arduino IDE: USB Type-B
Remote Control (RX1/TX1): USB Type-B
EXT REF IN: SMA female, external reference clock input
DC Power In: 2-Pin, 5.5 mm with 2-mm center pin
General Specifications
Dimensions: 8.19” L x 5.73” W x 2.68” H (208 mm L x 145.5 mm W x 68 mm H)
Weight: 2.3 lb. (1.1 kg)
Temperature, Operating: 5˚C to 45˚C; Storage: -20˚ C to 70˚ C
Humidity: 0˚ C to 30˚ C <95% relative humidity
All specifications are warranted performance specifications with guaranteed tolerance limits using the standard supplied 50 MHz TCXO frequency reference unless otherwise noted.
Specifications are valid if the instrument is within the calibration period, has been powered-on for at least 45-minutes, and the operating environment ambient temperature is between 18˚C and 28˚C unless otherwise noted.
Nominal refers to the features or characteristics of the design.
Typical refers to expected mean values. Typical performance is not warranted.
